 FLEXIBLE UNI-HOSE  FLEXIBLE METAL HOSE

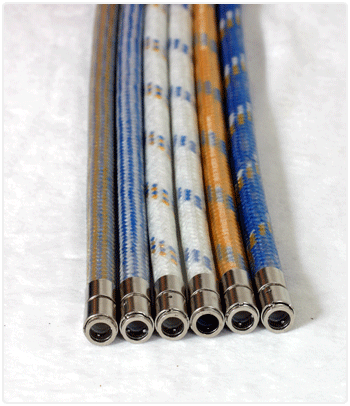

Flexible Hose

FLEXIBLE HOSE

The Patent of flexible uni-hose
- Invention patent #10-0847468 -
Name of invention - The connection of cock
nipple and corrugated gas hose of gas supply
pipe and the locking device
Cross section - fitting part for flexible hose
Cross section - hose part for flexible hose

  The features of flexible hose

1. Further improved stability
- The product has the optimum structure to prevent leakage of the gas because the connected part is completely
  and air-tightly connected using the patented rapid-connector.
- As the product is designed so that, after connecting the hose, the key may be turned on, the safety function is
  more improved.
- Hose is protected by the metallic corrugated pipe against cutting or external impact.
- The product is designed to protect the hose from flame or heat using fireproof-treated special nonflammable string
- The whole connector part is made of metal for improvement of safety and the connected part is not melted or burnt.
- The hose is designed as 4-fold structure for better safety.

2. Convenience in work
- The product has the structure of easy and rapid installatin.
- As the product is designed as Lock-On System with no requirement for additional part, the work is simple.
- The user may select various lengths of hoses from 1 meter to 3 meters to meet the installation place.

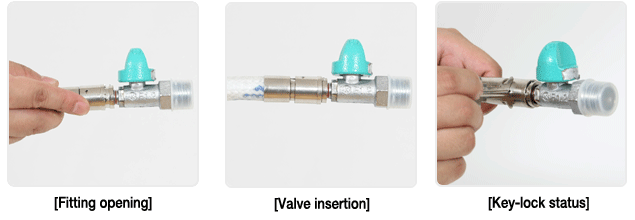

  The method of flexible hose joint

  Standard specifications of flexible hose

I¤ýD(mm) O¤ýD(mm) Length(M) W¤ýP(kPa) B¤ýP(Mpa)
9.5¡¾0.7 22 and under 1M/ 1.3M/ 1.5M/ 1.8M/ 2M/ 2.5M/ 3M 0.2 and under 4 more than
